Honda NTV650 Revere - Spare parts

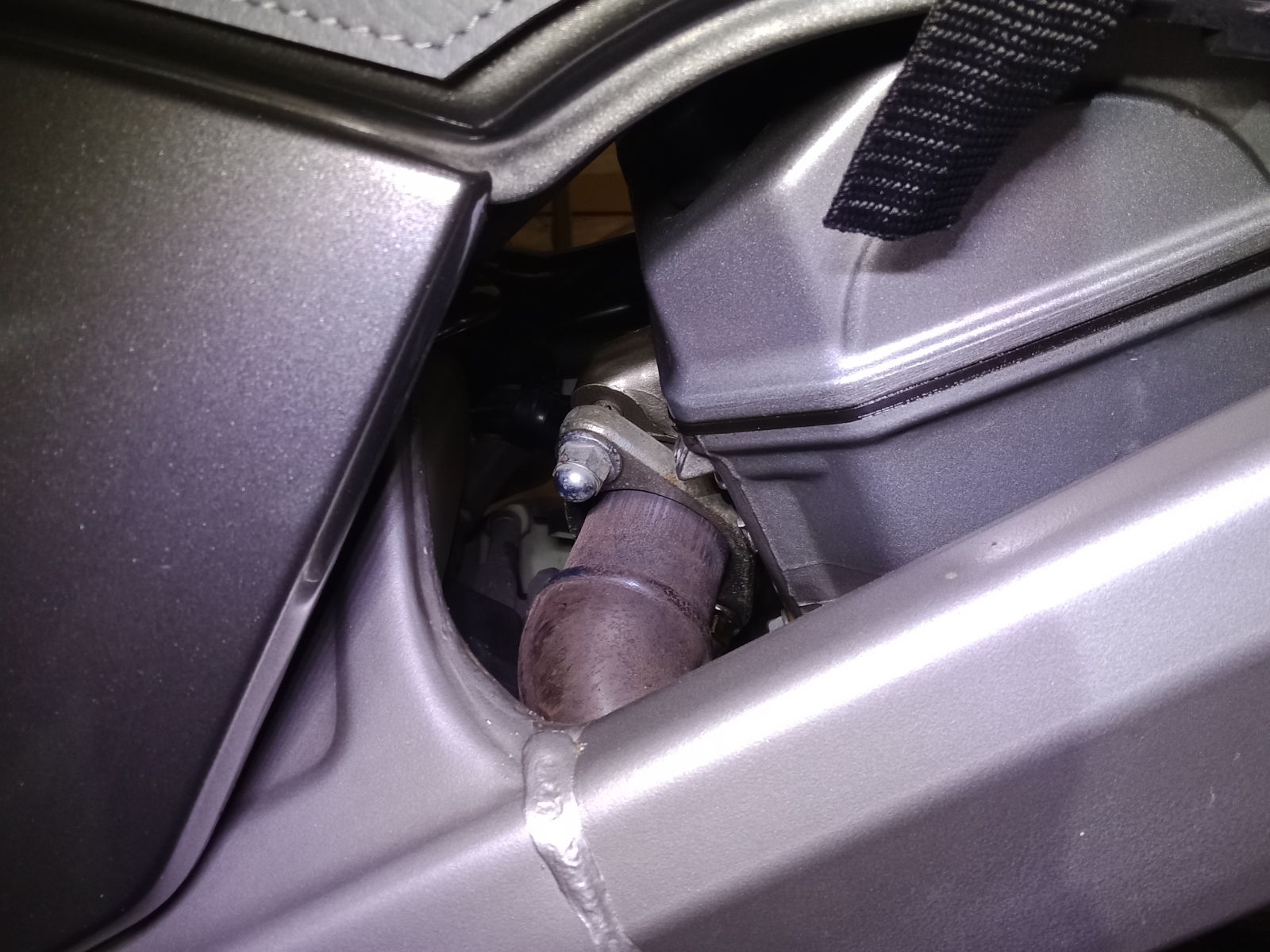

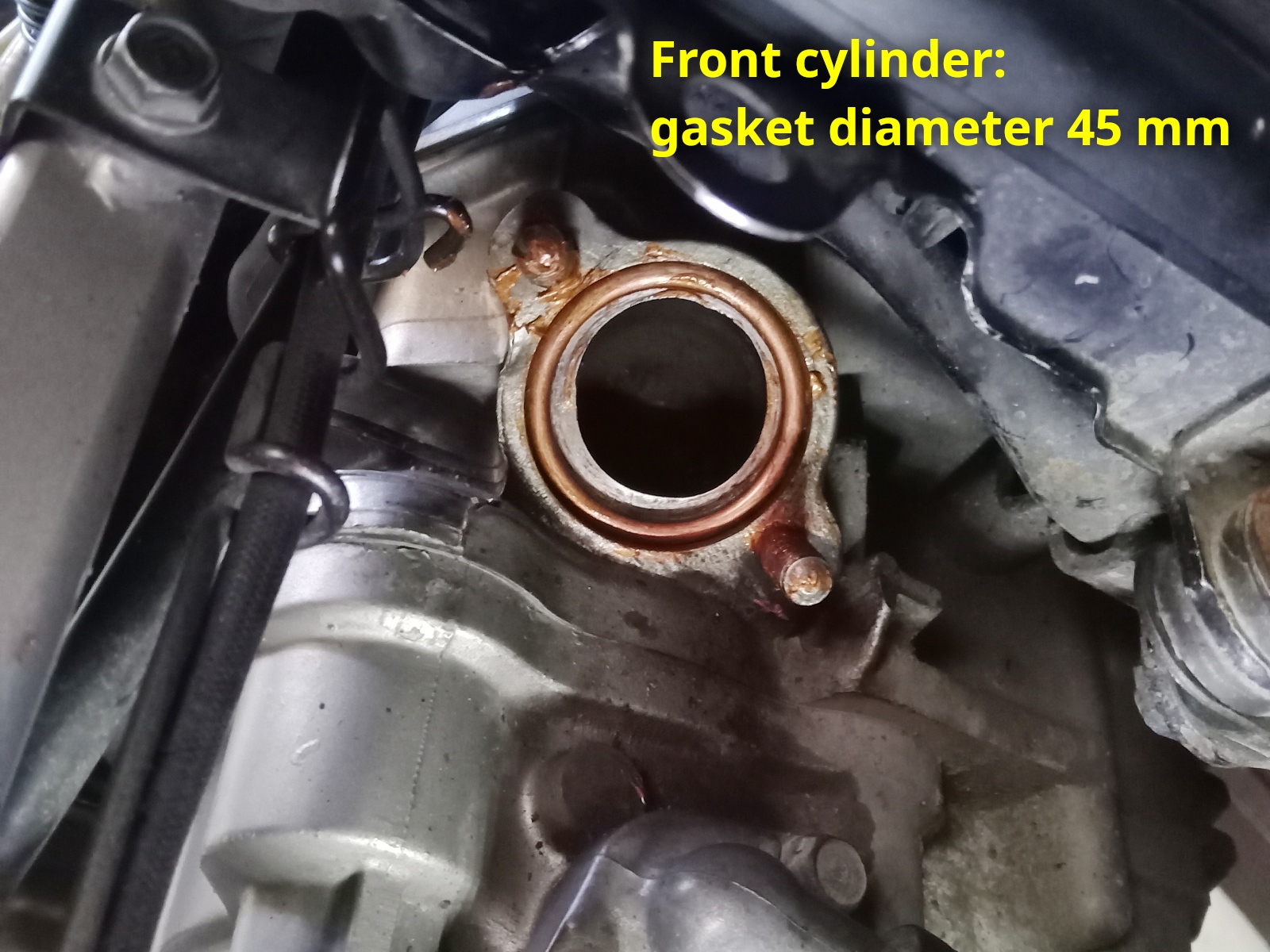

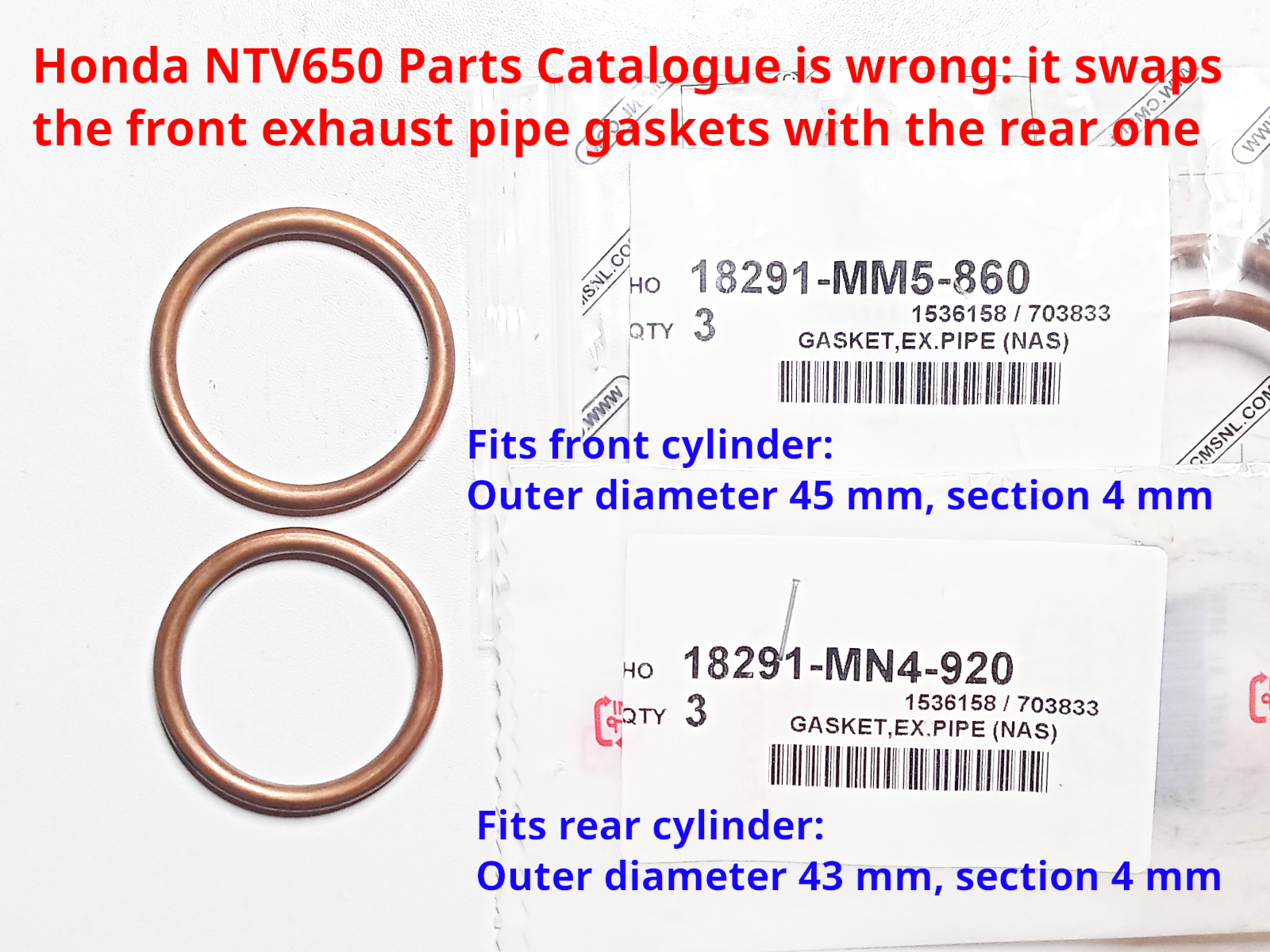

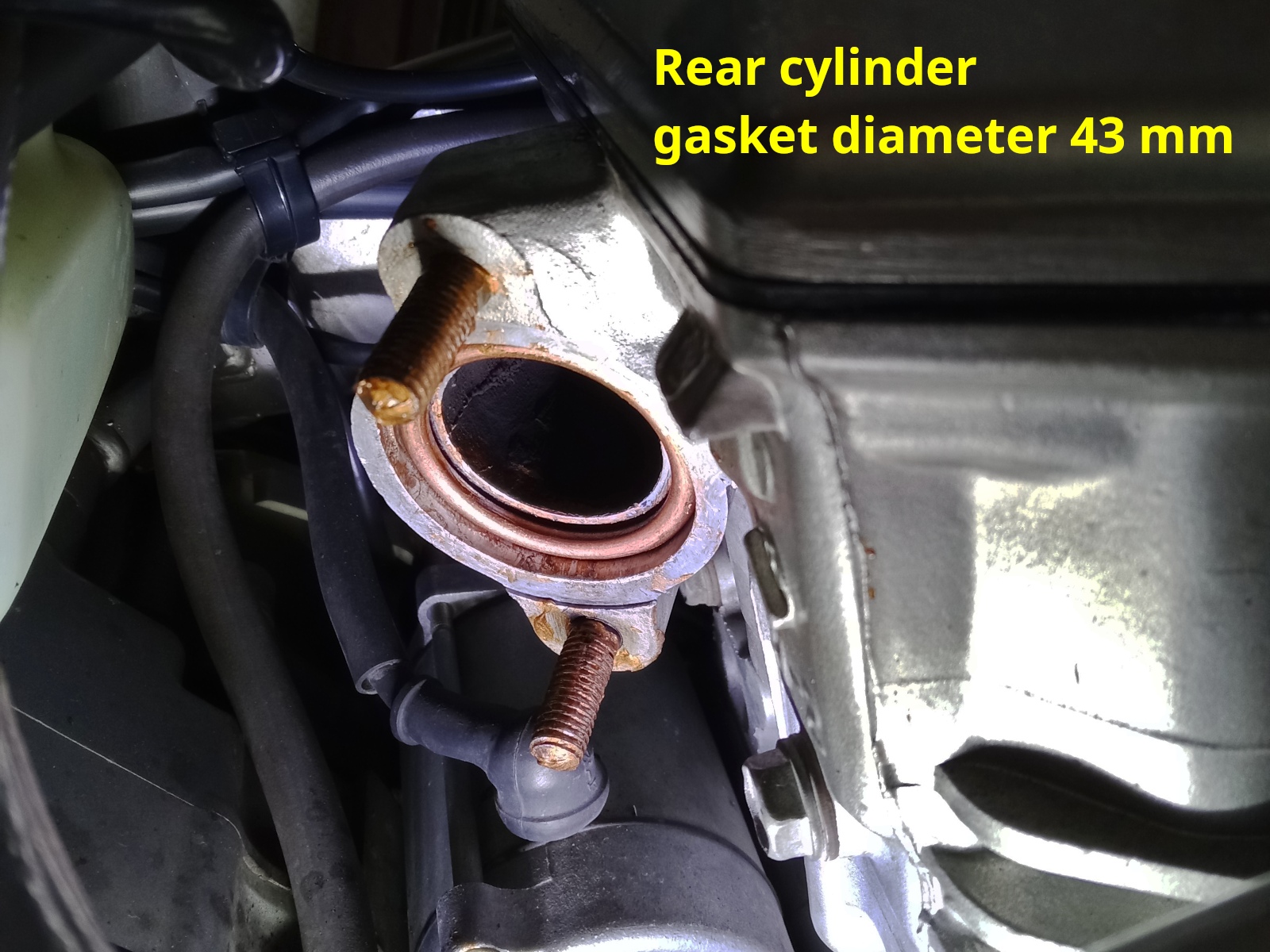

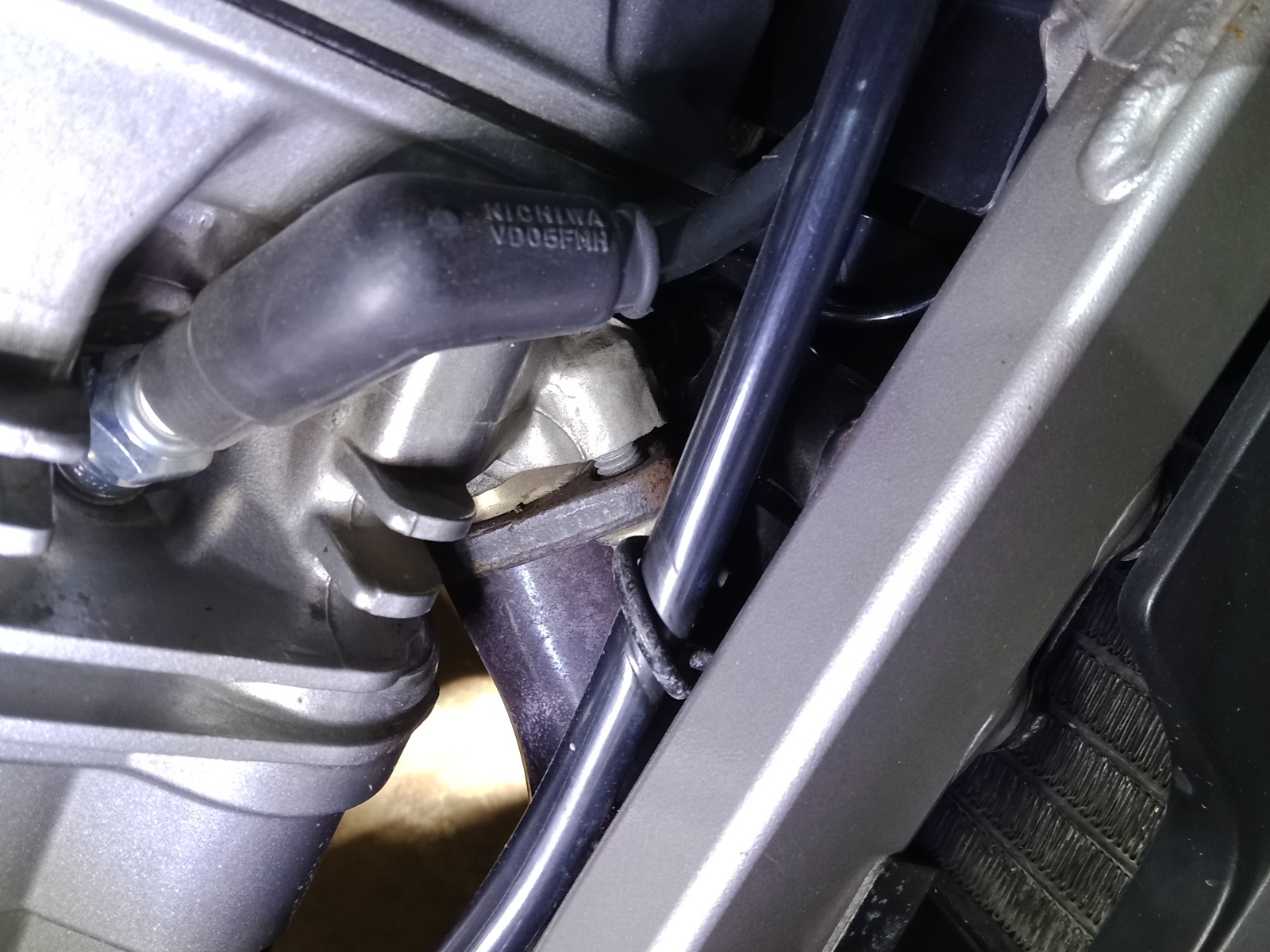

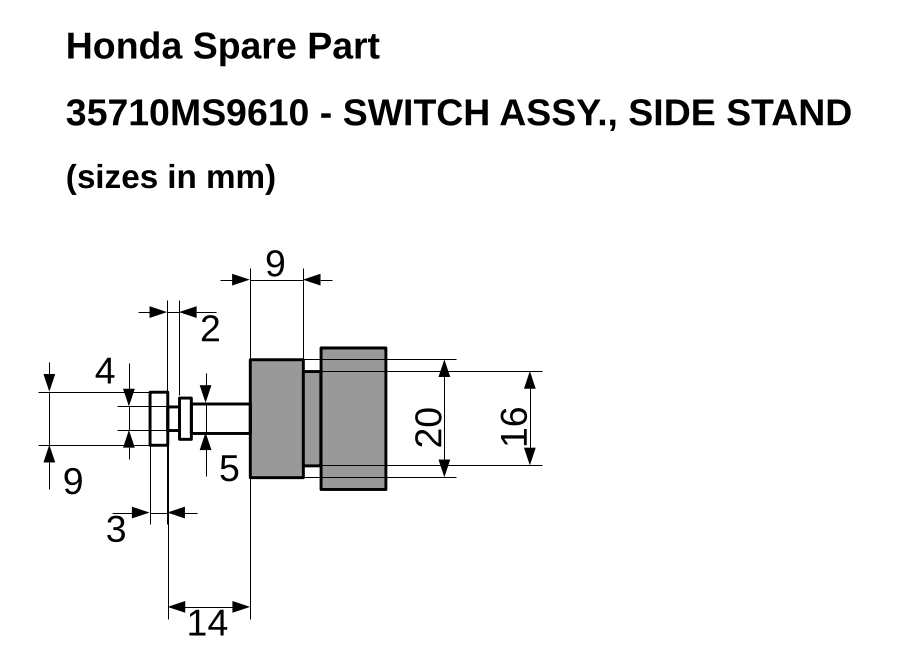

90452323000 WASHER, SEALING, 5MM Aluminium, 5.2 x 10.0 mm, 1.0 mm thick.

Custom parts

Harness for 12 v power supply

I made the following harness to draw 12 v from the battery for my GPS or for recharging the smartphone. The connector is useful also to connect a battery charge mantainer during periods of long non-use.

The 10 A fuse (a regular ATO/ATC blade fuse) is mounted on two faston connectors. The output is a 180923-0 TE Connectivity 2 way female unsealed faston connector. The fuse blades are 5.3 mm wide, but we neverthless used two 6.3 mm faston female connectors (The connector has been slightly squeezed to obtain a more solid connection). The 180923-0 connector accepts 6.3 mm faston female connectors, with the locking lance.

The eyelet terminals connect directly to the battery, the connector is reachable near the main beam of the motorcycle frame, on the left side.

Wires lenght
Black 800 mm
Red 660 mm
Red short 140 mm
