Honda NTV650 Revere - Side stand swtich

The side stand switch has OEM part number 35710MS9610 (SWITCH ASSY., SIDE STAND), which is no longer available as a replacement part in 2026. What easily breaks is the rubber dust cover, which is not available as a separate spare part.

At the moment the best solution I have found was to adapt a Brembo spare part that was originally designed as a protection for the rear brake pump.

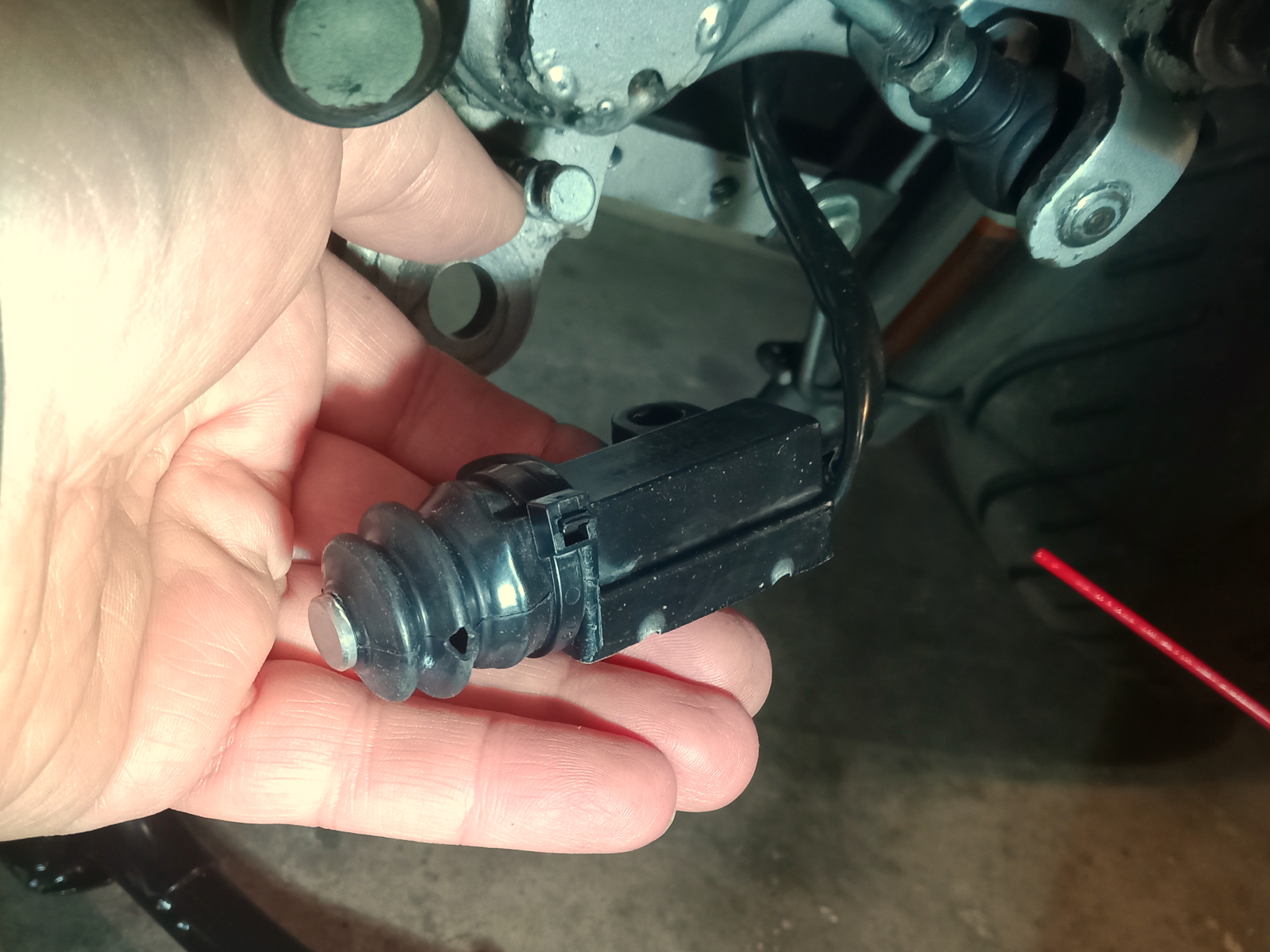

Replacing the dust cover of the side stand switch

Unfortunately, the Brembo rubber seal has a larger diameter, so I used a plastic tie to tighten it and hold it in place. I also cut a small hole in the back to allow air to pass through and possibly water to escape.

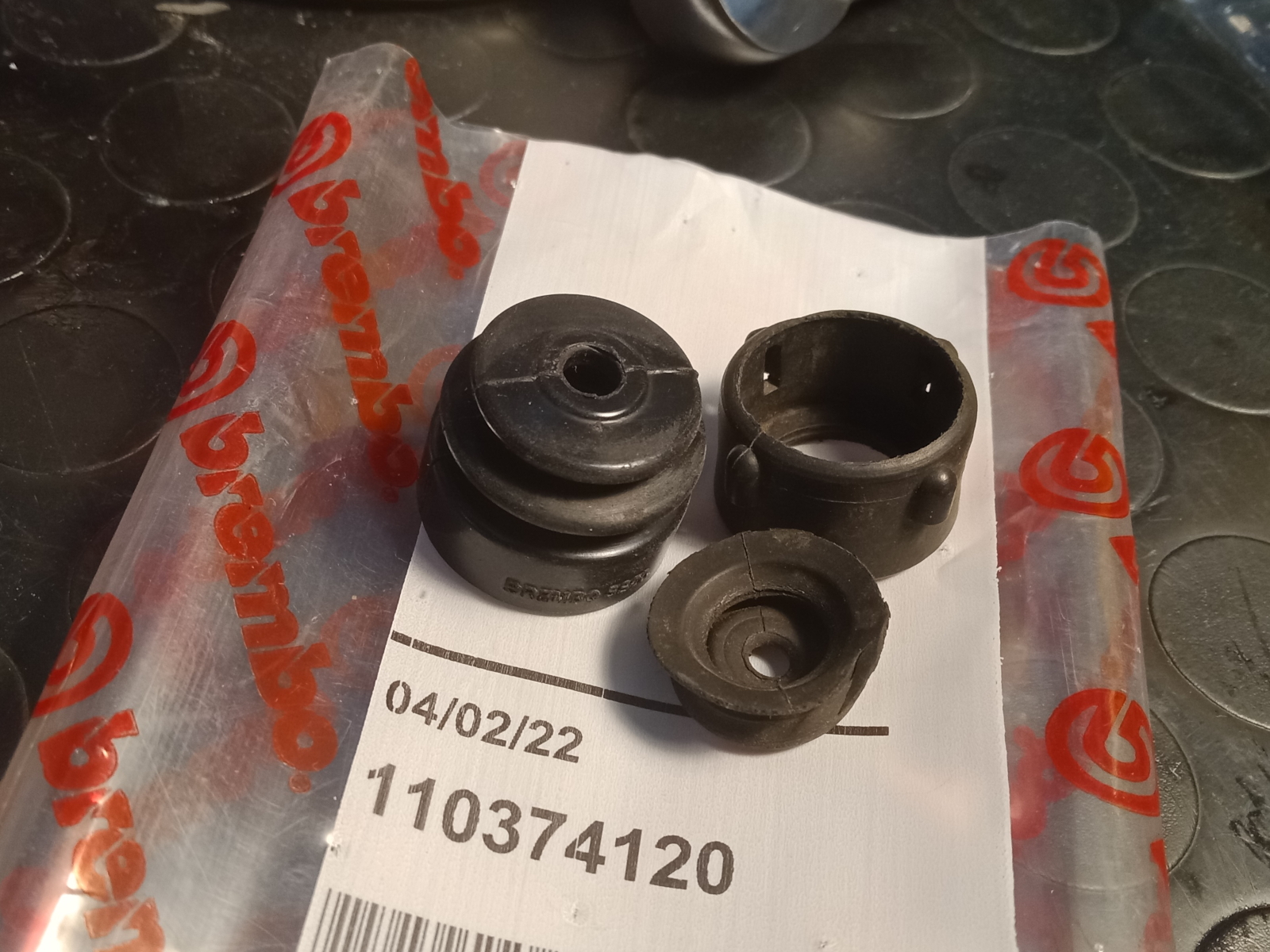

The Brembo part number for this spare part is 11037412, in the photo below you can see it compared to the broken original Honda dust cover.
